---COMPATIBLE-INFO---

Transit Connect 04/2024 - Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Courier 11/2023 - Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 11/2023 - Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 10/2023 - Please note: rear door cannot be opened even when bike carrier is tilted

Transit Custom 10/2023 - Please note: rear door cannot be opened even when bike carrier is tilted

Kuga 03/2024 -

All-Electric Capri 10/2024 -

Puma 04/2024 -

Fiesta 01/2022 -

Mustang Mach-E 09/2020 -

Puma 10/2019 - 03/2024

Transit Custom 06/2019 - 09/2023 Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 06/2019 - 09/2023 Please note: rear door cannot be opened even when bike carrier is tilted

Kuga 12/2019 - 02/2024

Ranger 06/2022 -

All-Electric Explorer 03/2024 -

Tourneo Connect 02/2022 - Please note: rear door cannot be opened even when bike carrier is tilted

Focus 01/2022 -

Tourneo Custom 02/2018 - 05/2019 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Custom 02/2018 - 05/2019 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 06/2018 - 07/2023 Please note: rear door cannot be opened even when bike carrier is tilted

EcoSport 10/2017 -

Fiesta 07/2017 - 12/2021

Mondeo Hybrid Hybrid 09/2014 -

KA+ 06/2016 - 02/2018

Kuga 09/2016 - 11/2019

C-MAX 04/2015 -

Focus 09/2014 - 03/2018

Edge 09/2018 -

KA+ 03/2018 -

Focus 04/2018 - 12/2021

Tourneo Courier 06/2018 - 07/2023 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Connect 06/2018 - 03/2024 Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Connect 06/2018 - 01/2022 Please note: rear door cannot be opened even when bike carrier is tilted

Mondeo 02/2019 -

Transit 05/2019 - Please note: rear door cannot be opened even when bike carrier is tilted

Fiesta Van 08/2019 - 12/2021

Ranger 02/2019 - 11/2022

Ranger 2012 - 01/2019

Kuga 11/2012 - 08/2016

B-MAX 2012 -

S-MAX 03/2010 - 04/2015

Fiesta 09/2008 - 10/2012

C-MAX 11/2010 - 03/2015

Focus 01/2011 - 08/2014

Transit Custom 08/2012 - 01/2018 Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Custom 08/2012 - 01/2018 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Connect 02/2014 - 05/2018 Please note: rear door cannot be opened even when bike carrier is tilted

EcoSport 10/2013 - 09/2017

Tourneo Connect 02/2014 - 05/2018 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Courier 03/2014 - 05/2018 Please note: rear door cannot be opened even when bike carrier is tilted

Transit 01/2014 - 04/2019 Please note: rear door cannot be opened even when bike carrier is tilted

Mondeo 09/2014 - 01/2019

Galaxy 06/2015 -

S-MAX 06/2015 -

Edge 01/2016 - 08/2018

Fiesta 11/2012 - 06/2017

---DESCRIPTION---

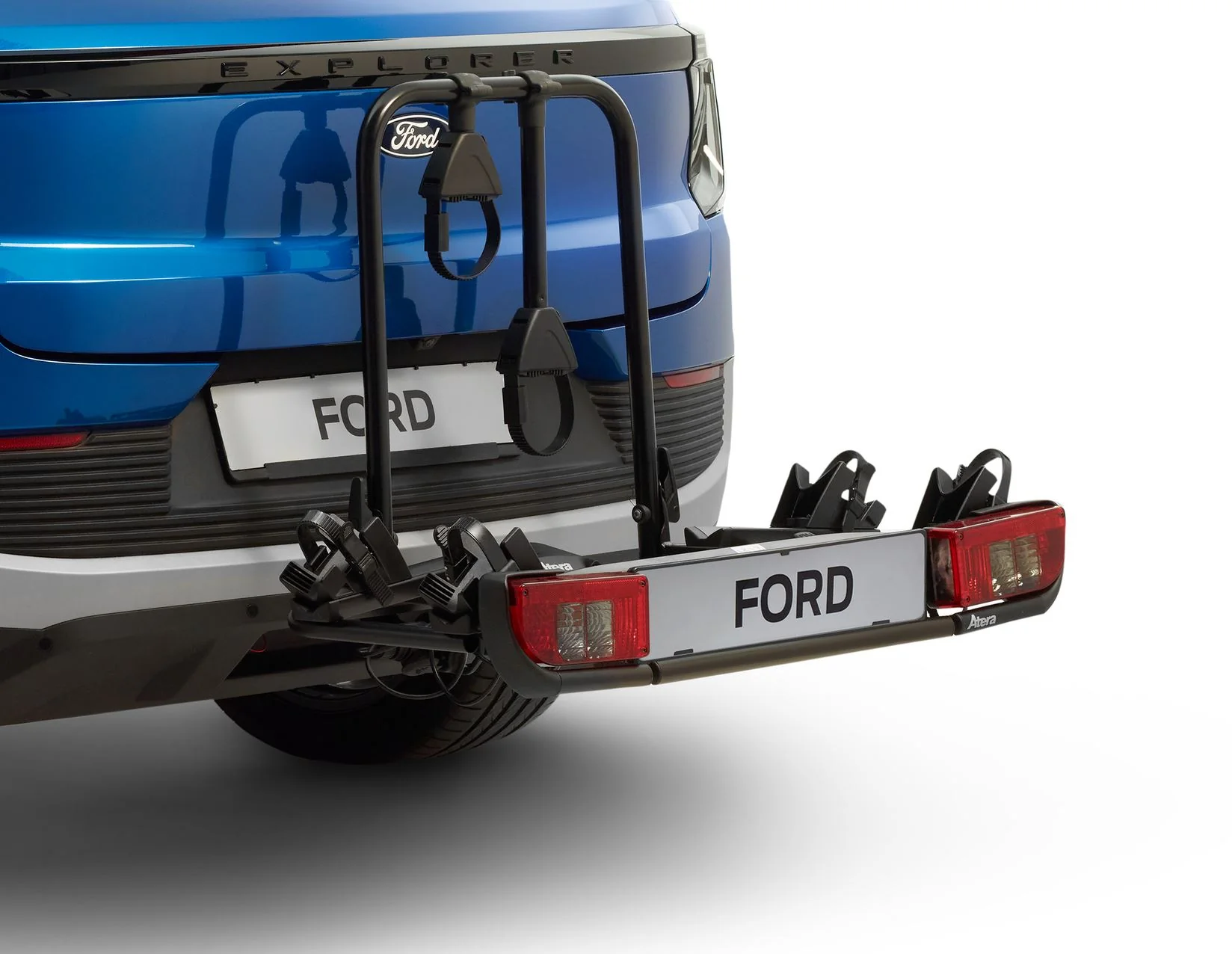

Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal lifting.

Tow bar mounted bike carrier for 2 bikes, especially designed for bikes with protruding electric motors and batteries. Bikes are lockable to the carrier and the carrier is lockable to the tow bar. The complete carrier with bikes is tiltable to help enable easy access to the load compartment. Soft rubber padded gripping arms hold and help protect the bike frames.

Please note: The gross weight mounted on the tow bar (weight of accessory product and its load altogether) is not allowed to exceed the permitted nose weight limit.

• Matt black anodised aluminium
• Gripper arm ratchet straps with over-tensioning protection
• Quick release self-locking function
• Bike carrier weight: 14.9 kg
• Suitable for bike frames 25 - 80 mm
• Bike wheel rail spacing: 230 mm (extra large spacing for protruding electric motors and batteries)
• Tyre widths up to 2.4 inches
• Maximum load capacity: 60 kg
• Maximum load per rail: 30 kg
• Dimensions: 1000 x 200 x 590 mm
• ECE type approval
• TÜV verified
• City crash tested

---GPSR-INFO---

These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
