UEBLER* REAR BIKE CARRIER X31-S,FOR 3 BIKES,60° TILTABLE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11

UEBLER* REAR BIKE CARRIER X31-S,FOR 3 BIKES,60° TILTABLE

UEBLER* REAR BIKE CARRIER X31-S,FOR 3 BIKES,60° TILTABLE

---COMPATIBLE-INFO---

Fiesta 01/2022 -

Tourneo Custom 06/2019 - 09/2023

Except PHEV. Please note: rear door cannot be opened even when bike carrier is tilted

Kuga 12/2019 - 02/2024

Focus 01/2022 -

Tourneo Custom 02/2018 - 05/2019 Please note: rear door cannot be opened even when bike carrier is tilted

Transit Custom 02/2018 - 05/2019 Please note: rear door cannot be opened even when bike carrier is tilted

Fiesta 07/2017 - 12/2021

Kuga 09/2016 - 11/2019

Mondeo 09/2010 - 08/2014

C-MAX 04/2015 -

Focus 09/2014 - 03/2018

Edge 09/2018 -

Focus 04/2018 - 12/2021

Transit Connect 06/2018 - 03/2024

Please note: rear door cannot be opened even when bike carrier is tilted

Tourneo Connect 06/2018 - 01/2022 Please note: rear door cannot be opened even when bike carrier is tilted

Mondeo 02/2019 -

Transit 05/2019 -

Please note: rear door cannot be opened even when bike carrier is tilted

Transit Custom 06/2019 - 09/2023

Except PHEV. Please note: rear door cannot be opened even when bike carrier is tilted

Fiesta Van 08/2019 - 12/2021

Ranger 02/2019 - 11/2022

Ranger 2012 - 01/2019 Please note: rear tailgate cannot be opened when bike carrier is tilted

Transit Custom 08/2012 - 01/2018 Please note: rear door cannot be opened when bike carrier is tilted

Kuga 11/2012 - 08/2016

S-MAX 03/2010 - 04/2015

Ranger 2006 - 2011

C-MAX 11/2010 - 03/2015 Only in combination with detachable or retractable tow bar

Focus 01/2011 - 08/2014

Galaxy 03/2010 - 04/2015

Tourneo Custom 08/2012 - 01/2018 Please note: rear door cannot be opened when bike carrier is tilted

Transit Connect 02/2014 - 05/2018 Please note: rear door cannot be opened when bike carrier is tilted

Transit 01/2014 - 04/2019 Please note: rear door cannot be opened when bike carrier is tilted

Tourneo Connect 02/2014 - 05/2018 Please note: rear door cannot be opened when bike carrier is tilted

Mondeo 09/2014 - 01/2019 Only in combination with detachable or retractable tow bar

Galaxy 06/2015 -

S-MAX 06/2015 -

Edge 01/2016 - 08/2018

---DESCRIPTION---

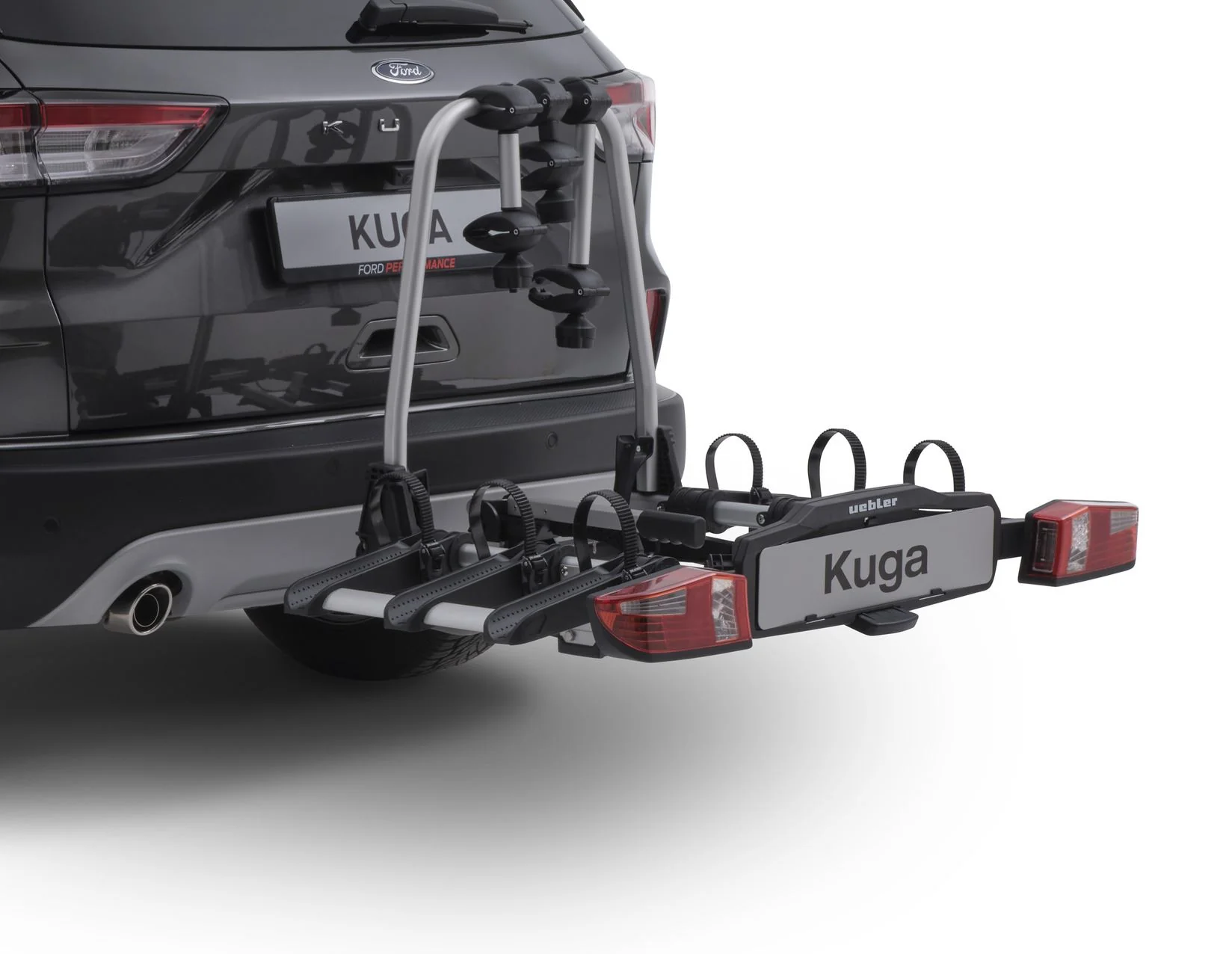

Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal lifting.

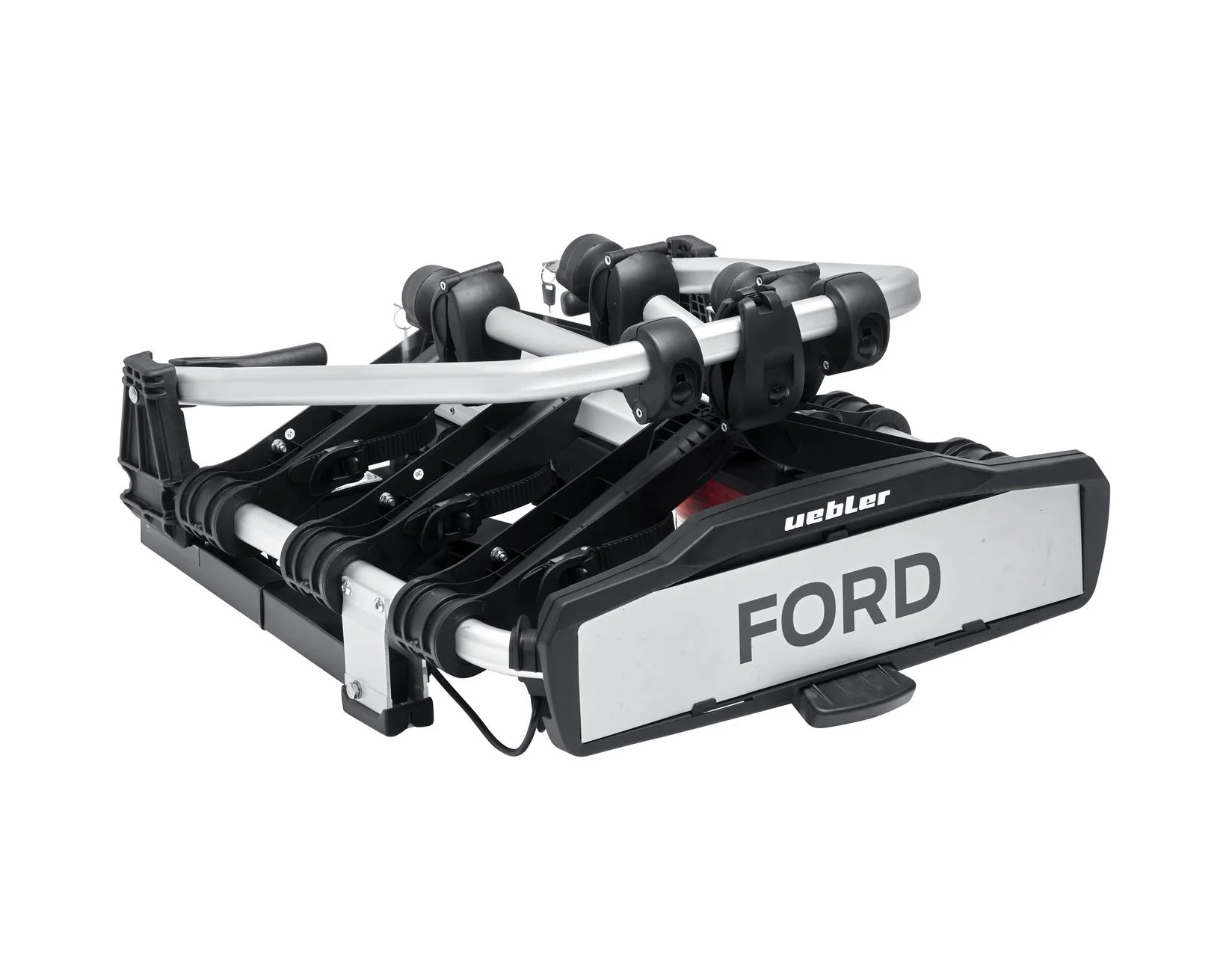

Small and lightweight tow bar mounted bike carrier for 3 bikes with smart foot pedal tilt for easy trunk access even with bikes loaded enabling easy access to the load compartment. Due to its patented folding system tail lights, bicycle holders and support frame can be easily and completely folded. Carrier is lockable to the tow bar and bikes are also lockable to the carrier.

Always check the vehicle owner's manual or the specifications sticker on the vehicle for the maximum recommended vertical tow bar load. Take care when tilting the carrier with loaded bikes. Projecting parts such as the handlebars may touch the ground.

Please note: The gross weight mounted on the tow bar (weight of accessory product and its load together) is not allowed to exceed the permitted nose weight limit

  • Size: 770 x 1190 x 790 mm, Size folded: 240 x 630 x 790 mm
  • Maximum bicycle wheel hub distance: 1300 mm
  • Weight: approximately 15.5 kg, includes 13 pin adapter
  • 30 kg load capacity for each bike
  • Bike arm suitable for bicycle frames up to a diameter of 75 mm round and 75 x 45 mm oval
  • Also suitable for E-Bikes
  • Maximum vertical load: 54 kg from 75 kg tow bar load and a D-Value 6.7 kN
  • Maximum vertical load: 34 kg under a tow bar load of 75 kg and a D-Value of 6.7 kN
  • Maximum vertical load under a D-Value of 6.7 kN or a tow bar load under 50 kg not permissible

---GPSR-INFO---

These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.


UEBLER GMBH
DAIMLERSTRASSE
91301
FORCHHEIM
GERMANY

[email protected]
